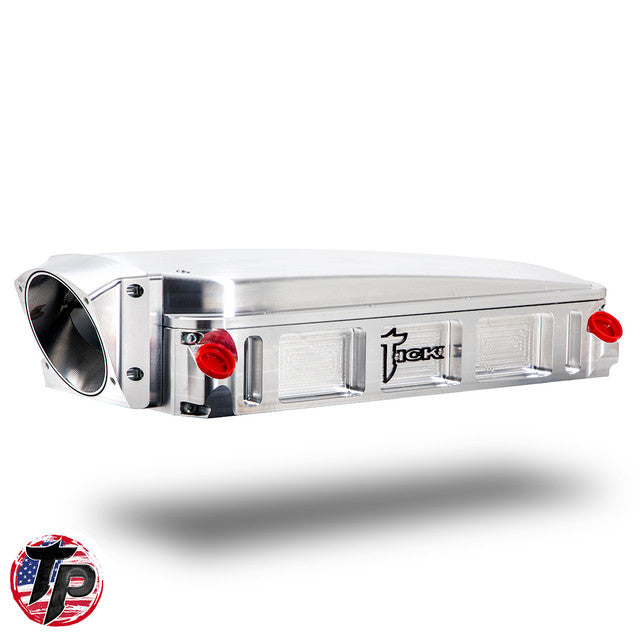

Tick 1500hp Ultra Low Profile Billet Air-to-Water Intercooler for Holley Ram Intakes

This new design provides an even lower height while retaining up to 1,500hp rating. Along with improved -12 angled inlets, that now clear taller fuel rails.

Manufactured in North Carolina, USA here at Tick Performance, our Billet Air-to-Water Intercooler gives you all the benefits of an A2W intercooler without the hassle of extra plumbing! This custom fabricated intercooler bolts directly to any Holley Hi-Ram or Lo Ram Intake Manifold and can efficiently support up to 1,500 Horsepower!

The new billet design offers a superior quality and appearance without an increase in price. The intercooler features four -12ORB (AN) Female inlet/outlets providing you with options on plumbing. See the drop-down menu for block-off plugs.

Specs

• Supports up to 1,500HP

• 100% made and hand assembled in North Carolina, USA

• 4 Female -12 AN O-ring female inlet/outlets

• Billet 6061-T6 aluminum construction

• Additional discount available for purchasing a Holley Manifold at the same time! Contact us for details.

Includes

• High quality mounting hardware

• O-ring sealing

• Integrated upper intake manifold

• LS Style Throttle body Outlet

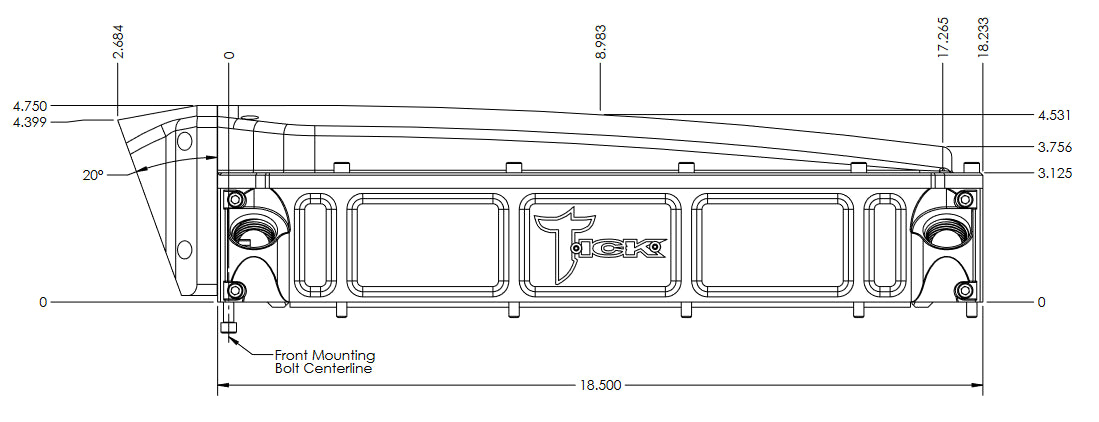

Overall Heights

• Overall Thickness 4.75 in

• Holley LS1 Lo-Ram Total Without Intercooler 5.17 in

Combo Heights

• Holley LS1 Lo-Ram Lower Intake With Intercooler 9.92 in

• Holley LS Hi-Ram Lower Intake With Intercooler 13.17 in

Measurements are based on the specs provided by Holley and include the tallest point of the intakes using the front-mount throttle body hats. The intercoolers will work with any Holley ram hat.
